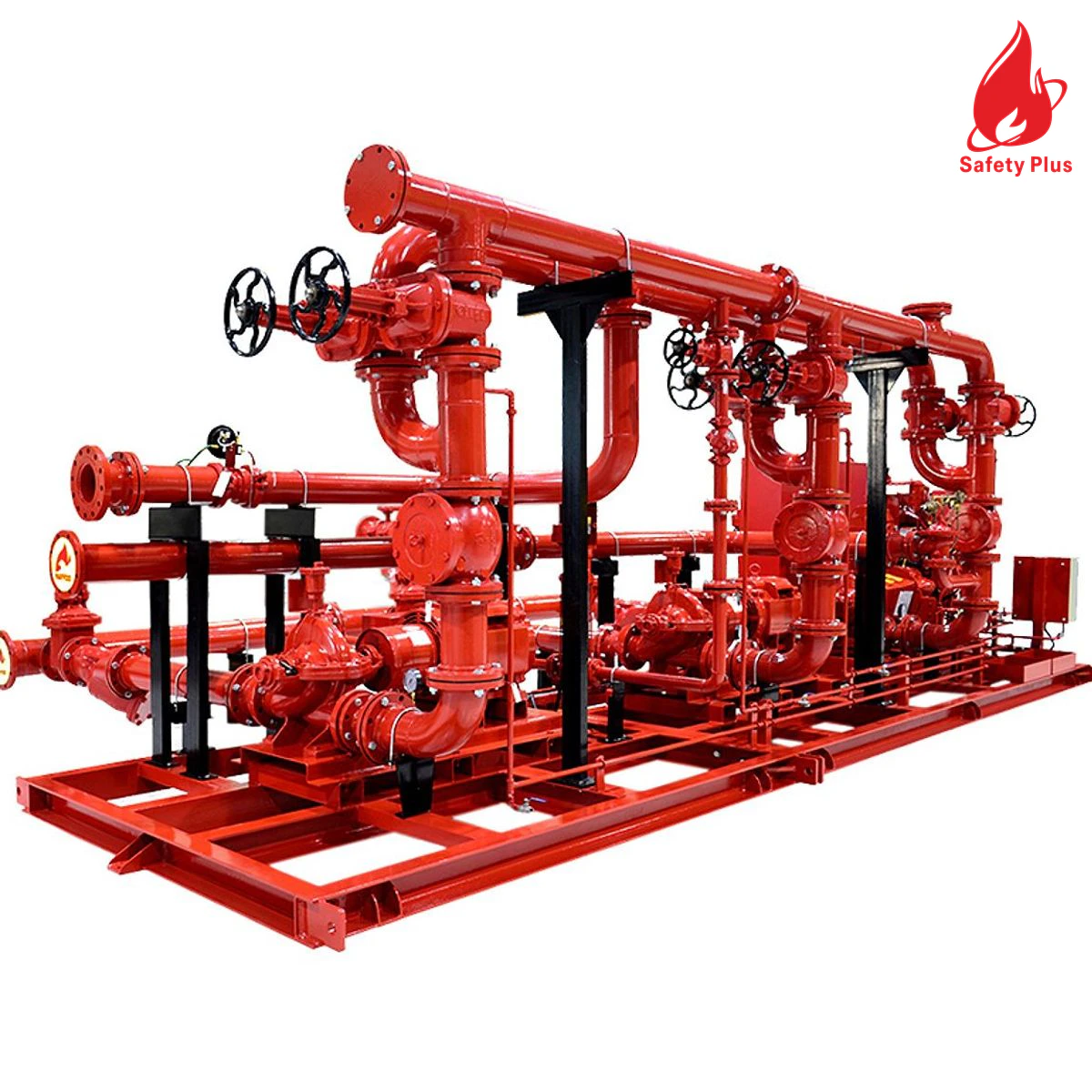

About the fire pump set with controller:
Fire Pump set with Controller: is available from Safety Plus for fire pump rooms and water-based protection systems across Bangladesh. Supply is matched to the submitted BOQ, approved specification, quantity and project schedule.
Product information supplied with the source record: (a) Fire Fighting Pump: Electric Motor Driven Pump Type: Horizontal Split Case Pump Rated Flow: 750 US GPM, Rated Head: 10 Bar, Brand: Naffco, Origin: UAE, Certification: UL Listed / FM Approved Accessories: • Casing Circulation Relief Valve - ¾" (1 Nos.) • Suction Compound Gauge - 4" dial ½" Connection (1 Nos.) • Discharge Pressure Gauges - 3½" dial ¼" Connection (1 Nos.) • Automatic Air Release Valve- ½" (1 Nos.) Electric Motor: Brand: National Motors, Origin: UAE, Certification: UL Listed Electric Pump Controller: Brand: Naffco, Origin: UAE, Certification: UL Listed / FM Approved (b) Fire Fighting Pump: Diesel Engine Driven Pump Type: Horizontal Split Case Pump Rated Flow: 750 US GPM, Rated Head: 10 Bar, Brand: Naffco, Origin: UAE, Certification: UL Listed / FM Approved Accessories: • Suction Compound Gauge - 4" dial ½" Connection (1 Nos.) • Discharge Pressure Gauges - 3½" dial ¼" Connection (1 Nos.) • Automatic Air Release Valve- ½" (1 Nos.) Diesel Engine: Brand: Fire Driver, Origin: UAE, Certification: UL Listed / FM Approved Accessories: • Fuel Tank with Fittings - 310 Gallons (1 Nos.) • Fire Pump Diesel Fuel System (1 Nos.) • Dual Set of Batteries (1 Nos.) • Industrial Muffler (1 Nos.) • Flexible Exhaust Connector (1 Nos.) Diesel Engine Fire Pump Controller: Brand: Naffco, Origin: UAE, Certification: UL Listed / FM Approved (c) Electric Motor Driven Jockey Pump: Pump Type: Vertical Multistage Pump Rated Flow: 25 GPM, Rated Head: 10.7 Bar, Brand: Naffco, Origin: UAE Jockey Pump Controller: Brand: Naffco, Origin: UAE, Certification: UL Listed / FM Approved
Send the model, required quantity, delivery location and technical requirement for submittal support, availability and a written project quotation. Safety Plus does not publish a fixed price because configuration, certification, quantity and delivery scope affect the quotation.
Typical applications
- fire pump rooms and water-based protection systems
