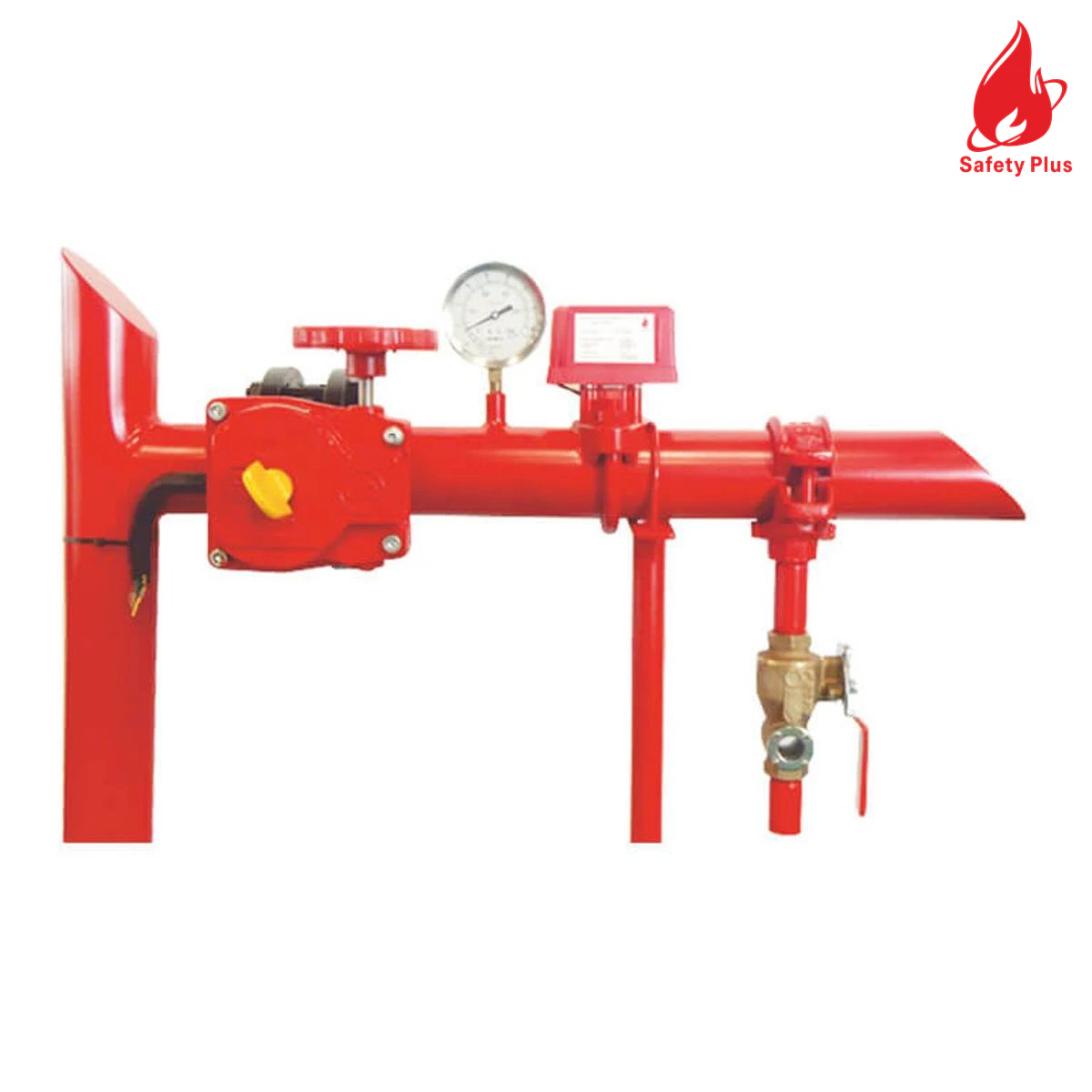

Pressure Reducing Valve (PRV) Assembly for Zone Control Valve: 150 mm

About the pressure reducing valve (prv) assembly for zone control valve: 150 mm

Pressure Reducing Valve (PRV) Assembly for Zone Control Valve: 150 mm is available from Safety Plus for hydrant, sprinkler and pump-room systems across Bangladesh. Supply is matched to the submitted BOQ, approved specification, quantity and project schedule.

Product information supplied with the source record: i) 2 Nos. 150mm dia Butterfly Valve with Supervisory Switch: Wafer Type, 300 Psi Working, Brand: Shield / Mech, Origin: UK / China Certification: UL Listed / FM Approved ii) 3 No. Pressure Gauge: 0-300 psi Brand: Shield / Winter Origin: UK / Canada, Certification: UL Listed / FM iii) 1 No. Pressure Reducing Valve (PRV): Size: 150 mm Class 150 Flanged Inlet Presure 250 psi Adj 30-165 psi Angle type, , Brand: Shield / Weflo, Origin: UK, Certification: UL Listed/FM iv) 1 No. Pressure Relief Valve 2": Ductile Iron Body, Class 300, 300 PSI, Flanged Inlet, Epoxy Coated c/w Bronze Seat Ring & Pilot, Monel Stem, Pilot Spring 100-300 PSI, With Y Strainer & Pre. Gauge Model: 50B-4KG1, Brand: Cla-Val Certification: UL/ ULC Listed v) 2 Nos Pressure Switch: 0-10 PSI with Single Contact Brand: Shield / Mech, Origin: UK / USA Certification: UL / FM Approved vi) 1 No. Test and Drain Valve: Brand: Shield / HC, Origin: UK / China Certification: UL / FM Approved

Send the model, required quantity, delivery location and technical requirement for submittal support, availability and a written project quotation. Safety Plus does not publish a fixed price because configuration, certification, quantity and delivery scope affect the quotation.

Typical applications

• hydrant, sprinkler and pump-room systems
